Zirconium Plate Price & List
| Spec. |
Thickness (mm) |
Width (mm) |
Length (mm) |
| Zr-PT005 |
5 |
≤ 2500 |
≤ 6000 |
| Zr-PT010 |
10 |
≤ 2500 |
≤ 6000 |
| Zr-PT015 |
15 |
≤ 2500 |
≤ 6000 |
| Zr-PT020 |
20 |
≤ 2500 |
≤ 6000 |
| Zr-PT025 |
25 |
≤ 2500 |
≤ 6000 |
| Zr-PT050 |
50 |
≤ 2500 |
≤ 6000 |
| Customizable |
Customizable |
Customizable |
Customizable |
Note: We provide customized service. If you don't find the plates you want, please send us an email directly. We can customize it according to your requirements.

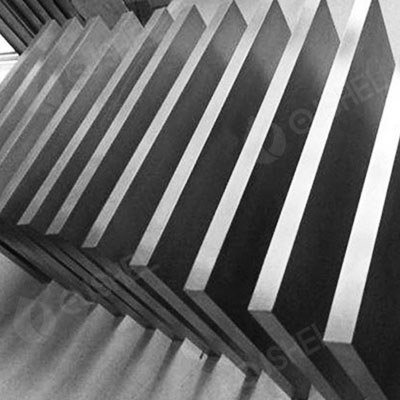

Zirconium plate refers to a zirconium plate with a thickness of more than 5 mm. Zirconium plate is a high-purity zirconium plate made by melting or pressing and sintering high-purity zirconium powder to form zirconium slab, and then undergoing a series of processes such as rolling, annealing, and surface treatment. According to the different purity grade, the zirconium plate grades are mainly divided into UNS R60700, R60702, R60705, R60001.
Zirconium Plate Application
Zirconium plates can be used in various occasions and fields depending on their purity, thickness, and shape. The details are as follows:
1. Zirconium plates can be processed into zirconium products such as
zirconium bars,
zirconium sheets,
zirconium strips,
zirconium crucibles, etc;
2. High purity zirconium plates can be processed into
zirconium sputtering targets for sputtering coating.
3. Zirconium plate can be processed into components, structural parts and connectors in aerospace, military, nuclear reaction and atomic energy fields.
