Inconel 625 Nickel Alloy Capillary Tube Price & List
| Spec. |
Outer Diameter (mm) |
Wall Thickness (mm) |
Length (mm) |
| IN625-CAP050 |
0.50 |
≥ 0.02 |
Customizable |
| IN625-CAP060 |
0.60 |
≥ 0.03 |
Customizable |
| IN625-CAP080 |
0.80 |
≥ 0.03 |
Customizable |
| IN625-CAP100 |
1.00 |
≥ 0.10 |
Customizable |
| IN625-CAP150 |
1.50 |
≥ 0.10 |
Customizable |
| IN625-CAP200 |
2.00 |
≥ 0.20 |
Customizable |
| IN625-CAP250 |
2.50 |
≥ 0.20 |
Customizable |
| IN625-CAP500 |
5.00 |
≥ 0.20 |
Customizable |
| Customizable |
Customizable |
Customizable |
Customizable |
Note: We provide customized service. If you don't find the tubes you want, please send us an email directly. We can customize it according to your requirements.

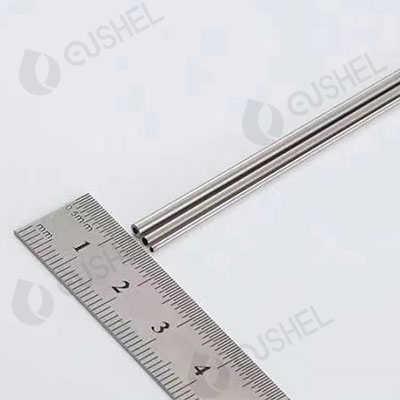

Inconel 625 nickel alloy capillary tube is a kind of super thin capillary tube made of Inconel 625 nickel alloy (Main chemical composition: C ≤0.1%, Cr 20-23%, Mo 8-10%, Nb 3.15-4.15%, Co ≤1%, Fe ≤5.0%, Mn ≤0.5%, P ≤0.015%, S ≤0.015%, Si ≤0.5%, Ti ≤0.4%, Cu ≤0.07%, Ni balance. The main standards are: ASTM N06625, JIS NCF625, DIN NiCr22Mo9Nb 2.4856). Capillary tube usually refers to a thin tube with an inner diameter equal to or less than 1mm. It is called capillary tube because some tubes are as thin as hair. Because different customers have different requirements for sizes, we uniformly refer to tubes with thinner diameters as capillaries.
Comparison of Inconel 625 Nickel Alloy Standards
| ASTM (USA) |
JIS (Japan) |
ISO (WTO) |
EN (European) |
| N06625 |
NCF625 |
NiCr22Mo9Nb |
NiCr22Mo9Nb 2.4856 |
Inconel 625 Nickel Alloy Capillary Tube Application
Inconel 625 nickel alloy capillary tube is commonly used in gas turbine engines, nuclear power equipment, aerospace engines and other fields, especially suitable for those who need to contact seawater and require high mechanical properties.
| Spec. |
Outer Diameter (mm) |
Wall Thickness (mm) |
Length (mm) |
| IN625-CAP050 |
0.50 |
≥ 0.02 |
Customizable |
| IN625-CAP060 |
0.60 |
≥ 0.03 |
Customizable |
| IN625-CAP080 |
0.80 |
≥ 0.03 |
Customizable |
| IN625-CAP100 |
1.00 |
≥ 0.10 |
Customizable |
| IN625-CAP150 |
1.50 |
≥ 0.10 |
Customizable |
| IN625-CAP200 |
2.00 |
≥ 0.20 |
Customizable |
| IN625-CAP250 |
2.50 |
≥ 0.20 |
Customizable |
| IN625-CAP500 |
5.00 |
≥ 0.20 |
Customizable |
| Customizable |
Customizable |
Customizable |
Customizable |
