Tungsten Wire Price & List
| Spec. |
Shape |
Diameter (mm) |
Length (mm) |
| W-W001 |
Round |
0.01 |
Customizable |
| W-W002 |
Round |
0.02 |
Customizable |
| W-W005 |
Round |
0.05 |
Customizable |
| W-W010 |
Round |
0.10 |
Customizable |
| W-W015 |
Round |
0.15 |
Customizable |
| W-W020 |
Round |
0.20 |
Customizable |
| W-W030 |
Round |
0.30 |
Customizable |
| W-W040 |
Round |
0.40 |
Customizable |
| W-W050 |
Round |
0.50 |
Customizable |
| W-W060 |
Round |
0.60 |
Customizable |
| W-W080 |
Round |
0.80 |
Customizable |
| W-W100 |
Round |
1.00 |
Customizable |
| W-W150 |
Round |
1.50 |
Customizable |
| W-W200 |
Round |
2.00 |
Customizable |
| Spec. |
Shape |
Section Size (mm) |
Length (mm) |
| W-WF0330 |
Rectangular |
0.03 x 3.0 |
Customizable |
| W-WF0530 |
Rectangular |
0.05 x 3.0 |
Customizable |
| Customizable |
Customizable |
Customizable |
Customizable |
Note: We provide customized service. If you don't find the wires you want, please send us an email directly. We can customize it according to your requirements.

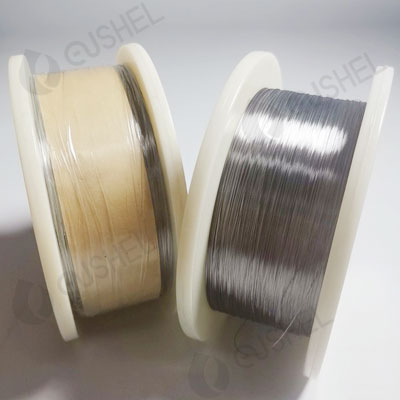

Tungsten wire is a tungsten metal wire made by melting or sintering high-purity tungsten powder into
tungsten bars, and then forging and drawing the tungsten bars. According to the different cross-sectional shapes, tungsten wires can be divided into
tungsten round wires and
tungsten flat wires.
Tungsten Wire Application
Tungsten wire has the characteristics of high melting point, high resistivity, good strength, and low vapor pressure, and can be used in various occasions and fields. The details are as follows:
1. Tungsten wire can be used as a heating material for high-temperature furnaces, as a heating element for electronic tubes, and as a reinforcing rib for composite materials;
2. Tungsten wire can be used to make filaments for various incandescent and halogen tungsten lamps, as well as electrodes for gas discharge lamps;
3. Tungsten wire can be used as the cathode of gas discharge lamps;
4. Tungsten wire can be used to make springs, brackets, leads, tungsten twisted wires, heaters, and high-temperature components in electric light sources and electronic devices;
5. High purity tungsten wire can be cut into tungsten pellets for evaporation coating;
6. Tungsten wire can be used as a spraying raw material for spraying;
7. Tungsten wire can be processed into
tungsten foil or
tungsten strip.
Tungsten Round Wire
Tungsten round wire refers to a type of tungsten wire with a circular cross-sectional shape. It is also the most common type of tungsten wire.
| Spec. |
Shape |
Diameter (mm) |
Length (mm) |
| W-W001 |
Round |
0.01 |
Customizable |
| W-W002 |
Round |
0.02 |
Customizable |
| W-W005 |
Round |
0.05 |
Customizable |
| W-W010 |
Round |
0.10 |
Customizable |
| W-W015 |
Round |
0.15 |
Customizable |
| W-W020 |
Round |
0.20 |
Customizable |
| W-W030 |
Round |
0.30 |
Customizable |
| W-W040 |
Round |
0.40 |
Customizable |
| W-W050 |
Round |
0.50 |
Customizable |
| W-W060 |
Round |
0.60 |
Customizable |
| W-W080 |
Round |
0.80 |
Customizable |
| W-W100 |
Round |
1.00 |
Customizable |
| W-W150 |
Round |
1.50 |
Customizable |
| W-W200 |
Round |
2.00 |
Customizable |
| Customizable |
Customizable |
Customizable |
Customizable |
Tungsten Flat Wire
Tungsten flat wire refers to a type of tungsten wire with a rectangular cross-sectional shape. The cross-sectional dimensions of tungsten flat wires can be customized according to customer requirements.
| Spec. |
Shape |
Section Size (mm) |
Length (mm) |
| W-WF0330 |
Rectangular |
0.03 x 3.0 |
Customizable |
| W-WF0530 |
Rectangular |
0.05 x 3.0 |
Customizable |
| Customizable |
Customizable |
Customizable |
Customizable |
