Tantalum Foil (Ta)

Tantalum Foil Price & List

Spec.	Thickness (mm)	Width (mm)	Length (mm)
Ta-F007100	0.007	70	70
Ta-F010100	0.01	100	100
Ta-F020100	0.02	100	100
Ta-F030100	0.03	100	100
Ta-F050100	0.05	100	100
Ta-F080100	0.08	100	100
Ta-F100100	0.10	100	100
Ta-F150100	0.15	100	100
Ta-F200100	0.20	100	100
Ta-F005	0.005	≤300	≥300
Ta-F007	0.007	≤300	≥300
Ta-F010	0.01	≤300	≥300
Ta-F020	0.02	≤300	≥300
Ta-F050	0.05	≤300	≥300
Ta-F080	0.08	≤300	≥300
Ta-F100	0.10	≤300	≥300
Ta-F150	0.15	≤650	≥50
Ta-F200	0.20	≤650	≥50
Customizable	Customizable	Customizable	Customizable

Note: We provide customized service. If you don't find the foils you want, please send us an email directly. We can customize it according to your requirements.

Tantalum is a steel gray metal, which belongs to VB family in the periodic table of elements. Tantalum has an atomic number of 73 and an atomic weight of 180.9479. The hardness of tantalum is low, and its melting point is as high as 2995 ℃. Tantalum is malleable and can be drawn into thin foil of filament type. In addition, tantalum has a strong toughness, superior to copper.

Tantalum foil is an ultra-thin tantalum foil less than 0.2 mm. Compared with tantalum strip, its thickness is thinner and the production process is more difficult, which is suitable for some occasions where the thickness requirements are relatively thin and high. With the reduction of tantalum foil thickness, its production difficulty is greatly improved. The thinner the thickness, the lower the production efficiency, and the higher the corresponding production cost.

Tantalum Foil Application

Tantalum foil can be divided into scientific research tantalum foil, micron grade tantalum foil, and industrial grade tantalum foil. Applications vary depending on the occasion.

Tantalum Foil for Scientific Research

Tantalum foil for scientific research is often used in certain specific scientific experiments or research due to its small size and small quantity. It is generally cut from rolled tantalum foil. We can provide tantalum foil for scientific research. Dimensions can be tailored according to requirements.


Spec.	Thickness (mm)	Width (mm)	Length (mm)
Ta-F007100	0.007	70	70
Ta-F010100	0.01	100	100
Ta-F020100	0.02	100	100
Ta-F030100	0.03	100	100
Ta-F050100	0.05	100	100
Ta-F080100	0.08	100	100
Ta-F100100	0.10	100	100
Ta-F150100	0.15	100	100
Ta-F200100	0.20	100	100
Customizable	Customizable	Customizable	Customizable

Micron Grade Tantalum Foil

Micron grade tantalum foil refers to ultra-thin tantalum foil with a thickness of less than 10 um. Its rolling difficulty is extremely high, and it is suitable for special occasions.


Spec.	Thickness (mm)	Width (mm)	Length (mm)
Ta-F005	0.005	≤300	≥300
Ta-F007	0.007	≤300	≥300
Customizable	Customizable	Customizable	Customizable

Industrial Grade Tantalum Foil

Industrial grade tantalum foil is mainly used in industrial fields in batches. The details are as follows:
1. Tantalum foil can be used for laboratory equipment;
2. It can be used as a substitute for platinum;
3. It can be used for super alloys and electron beam melting;
4. It can be used in metallurgy, machining, glass and ceramic industries.
5. Tantalum foil can be used to make evaporating utensils and so on. It can also be used as electrodes, rectifiers and electrolytic capacitors of electronic tubes.
6. Medically, tantalum foil can be used to make thin sheets and sew damaged tissues.


Spec.	Thickness (mm)	Width (mm)	Length (mm)
Ta-F010	0.01	≤300	≥300
Ta-F020	0.02	≤300	≥300
Ta-F050	0.05	≤300	≥300
Ta-F080	0.08	≤300	≥300
Ta-F100	0.10	≤300	≥300
Ta-F150	0.15	≤650	≥50
Ta-F200	0.20	≤650	≥50
Customizable	Customizable	Customizable	Customizable

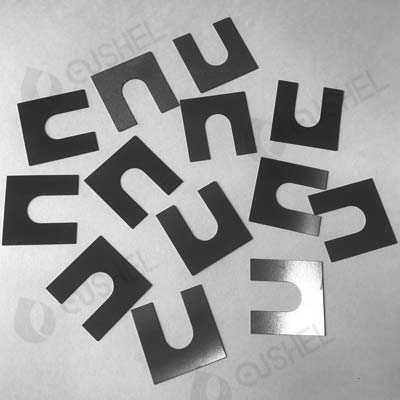

Tantalum Foil Processing Parts

We can customize and process tantalum foil components with special shapes according to customer requirements. Customized according to customer requirements and drawings.
