Molybdenum Plate Price & List
| Spec. |
Thickness (mm) |
Width (mm) |
Length (mm) |
| Mo-PT005 |
5 |
≤ 1800 |
≤ 2500 |
| Mo-PT010 |
10 |
≤ 1800 |
≤ 2500 |
| Mo-PT015 |
15 |
≤ 1800 |
≤ 2500 |
| Mo-PT020 |
20 |
≤ 1800 |
≤ 2500 |
| Customizable |
Customizable |
Customizable |
Customizable |
Note: We provide customized service. If you don't find the plates you want, please send us an email directly. We can customize it according to your requirements.

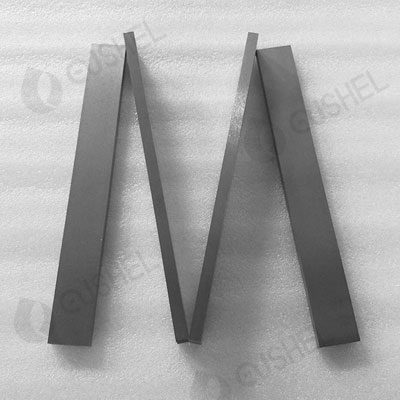

Molybdenum plate is a type of molybdenum metal plate with a thickness more than 5 mm. It is made by pressing high-purity
molybdenum powder, sintering it into molybdenum slab, and then rolling, annealing, and other processes to produce high-purity molybdenum plate. According to the purity of raw materials, molybdenum plates can be divided into 3N (99.9%) high-purity molybdenum plates, and 3N5 (99.95%) high-purity molybdenum plates.
Molybdenum Plate Application
Molybdenum plates can be used in different occasions and fields depending on their purity and shape. The details are as follows:
1. High purity molybdenum plate can be processed into rectangular
molybdenum sputtering target material for sputtering deposition coating;
2. Molybdenum plates can be processed into molybdenum products such as
molybdenum bars,
molybdenum sheets,
molybdenum strip and
molybdenum crucibles ;
3. Molybdenum plates can be used to produce molybdenum insulation screens and heating elements for molybdenum boats and high-temperature furnaces;
4. Molybdenum plates can be used to make electric light source parts and vacuum devices.
| Spec. |
Thickness (mm) |
Width (mm) |
Length (mm) |
| Mo-PT005 |
5 |
≤ 1800 |
≤ 2500 |
| Mo-PT010 |
10 |
≤ 1800 |
≤ 2500 |
| Mo-PT015 |
15 |
≤ 1800 |
≤ 2500 |
| Mo-PT020 |
20 |
≤ 1800 |
≤ 2500 |
| Customizable |
Customizable |
Customizable |
Customizable |
